USB C HUB

TYPE-C HUB.USB Type-C to HDMI+USB3.O+RJ45+TF+PD
ODM/OEM SERVICE
Various functional specifications TYPE- C HUB docking station can be produced according to customer needs,
TYPE- C docking station, USB- C HUB, HDMI extender, etc. can be customized.
DRAFT
It is necessary to draw perspective lines, supplemented by shadow expression. The main purpose is to show the characteristics of the product, the organization, and the way of combination to facilitate communication and thinking (mostly for research and discussion among designers).
DRAFT
Structure
The structure diagram refers to the call relationship of the module as a clue, the top-down con nection indicates the call relationship and indicates the direction and content of the parameter transfer, which reflects the software hierarchical structure from a macro perspective.
Structure
Circuit Schematic
A drawing in which circuit symbols are connected to each other to reflect the electrical connec tion of each component. That is, a circuit diagram composed of simple illustrations.
Circuit Schematic

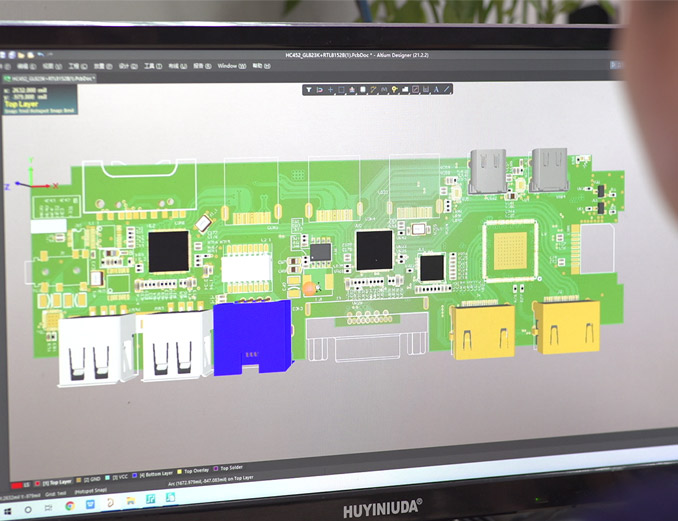

Layout
Layout is more and more talked about in the field of electronic design, which mainly refers to the layout of PCB. The quality of Layout has directly affected the performance of consumer elec tronic products.
Layout

efo wellink

why choose us

Docking station customization、Function design、Production and manufacturing

  • 20 years of experience in R&D and production of USB HUB
    1

    20 years of experience in R&D and production of USB HUB

    The factoty covers an area of 5,000 square meters, and the company currently has 83 employees, including more than 20 R&D and production technical management staff. The main products are TYPE-C HUB, USB HUB, Docking Station, KVM Switch, various Male/Female conversion adapters, video signal cable extender, USB Cable signal amplifier, high-power gallium nitride PD charger and wireless Charger, high-definition wireless screen projector, HDMI video capture card, video USB Power Cable, etc.
  • Professional teams provide customized development solutions for docking stations
    2

    Professional teams provide customized development solutions for docking stations

    The R&D team started with the original engineers of mainstream chips in Taiwan, with more than 10 hardware/software development engineers. It can provide customers with one-stop services such as design, development, processing, and production of high-definition video and audio signal conversion and connection products, and can also cooperate with customers in different industries to customize and develop professional application projects.
  • Adopt international imported production equipment
    3

    Adopt international imported production equipment

    There are YAMAHA, Panasonic high-speed placement machine, reflow soldering, wave soldering, AOI testing machine; DIP workshop has automatic plug-in line, post-soldering line, test assembly line; wire production line, injection molding machine, etc.
  • Strict control and quality assurance
    4

    Strict control and quality assurance

    Passed ISO9001, ISO14001, SA8000 and other management system certification, Amazon's own brand supplier factory quality management audit. The products have passed CE, ROHS, FCC certification, and national 3C certification.
  • Complete supply chain system
    5

    Complete supply chain system

    Adopting international first-line mainstream chips, hardware, plastics, and electronics cover the production needs of the entire industry.
